Main Functions Of The Product

Discover the unique features and functions of Tank-type Parallel Tracked Lawn Mower.

550L Suitable Applications

This machine is ideal for a wide range of mowing and landscaping tasks, including: orchard weeding (row spacing adjusted to machine size), slope mowing (up to 45°), large estates and golf course edge maintenance, small farm straw return, municipal green belts and park mowing, reservoir embankments and water conservancy vegetation management, home lawn care, complex tall-grass areas with diverse plants, and areas with sparse shrubs. Its versatility makes it suitable for both professional and domestic use on varied terrains.

Dual-Wheel Stability Upgrade

The machine features an upgraded dual-wheel structure that significantly improves overall stability during operation. This design helps prevent track derailment, provides better balance on uneven or sloped surfaces, and ensures smoother, more reliable movement. Operators can work with greater confidence, even on complex terrain, while maintaining consistent performance and safety throughout extended mowing or landscaping tasks.

Dual-Blade Design

The machine is equipped with a dual-blade system that operates via belt-driven transmission instead of direct connection to the engine crankshaft. This design effectively protects the engine crankshaft from damage, ensures smoother power delivery to the blades, and provides more reliable and durable cutting performance over long-term use.

Key Features

The machine comes standard with a 24V industrial brushless motor and remote engine start/stop functionality for convenient and safe operation. An upgraded dual-wheel structure further enhances stability, prevents track derailment, and ensures smoother, more reliable movement across uneven or challenging terrains.

Mowing Blade System

The machine features a dual-blade straight-type cutting deck. One version uses manganese steel blades with a cutting width of 600 mm, while the upgraded version uses 65Mn spring steel blades, 3 mm thick, with a cutting width of 800 mm. Both versions offer adjustable cutting heights from 20 to 180 mm, allowing flexible operation for different grass types and mowing conditions.

Standard Features

The machine comes standard with an electric-start engine, remote engine start, remote engine stop, and remote emergency stop. It also includes a dual-wheel structure, dual cutting blades, and a brushless motor, ensuring safer operation, higher cutting efficiency, and improved stability on various terrains.

Key Features

Remote Control Safety

The machine comes with a standard remote control system, supporting remote engine start, remote engine stop, and emergency stop. Combined with an electric-start engine, it makes operation easier and improves safety, especially in complex working conditions.

Strong Cutting Performance

Equipped with a brushless motor and dual cutting blades, it delivers stronger cutting performance and cleaner mowing results. This configuration is ideal for heavy-duty tasks and helps maintain stable efficiency during long working hours.

Stable & Reliable Driving

The added dual-wheel structure improves stability and helps prevent track derailment, ensuring smoother movement. The parallel track design also uses a wider track (18) compared to the triangular track (15), providing a more compact structure with stronger support and more stable driving performance.

We Have Different Product Lines

Item	900L	900L non-sealed snow shovel with additional push function
Product Images
Price	$2487-3000	$2687-3100
Overall Dimensions	13301410700 mm	13001400650 mm
Machine Weight	416 kg	340 kg
Cutting Width	900m	900m
Cutting Height	0-260 mm	0-260 mm
Travel Speed	0-3km/h	0-3km/h
60Max Climbing Angle	70°	70°
Mowing Efficiency	4000 ㎡/h	4000 ㎡/h
Remote Control Distance	500 m	500 m
Power	22HP	22HP
Caution Light	No LED	No LED
Control System	Integrated circuit control system	Integrated circuit control system
Power Supply	Engine self-charging system	Engine self-charging system

Applicable Scenarios

Orchard weeding (row spacing based on machine width), slope lawn mowing (within 45°);
Large estates and golf course edge areas;
Small/medium/large farms: straw mulching and field clearing;
Municipal green belts and parks with complex terrain;
Water conservancy projects such as reservoir dams and embankments;
Large-area wasteland reclamation, land clearing, and weed removal;
Home lawn mowing;
Complex grassland with tall vegetation and mixed plants;
Complex terrain with shrubs and dense vegetation.

We can provide customized solutions

Product-level customization built to match your terrain, workload, and operating habits.

Customization options

Model & Structure Customization by Application
Chassis, Wheel & Track Configuration Options
Power System & Engine Specification Selection
Cutting Width, Height & Deck Design Customization
Attachment Integration (Snow Blade, Sprayer, etc.)
Control System, Safety & Function Module Customization
Appearance, Color & Branding Custom Options
OEM / ODM Support with Engineering Assistance

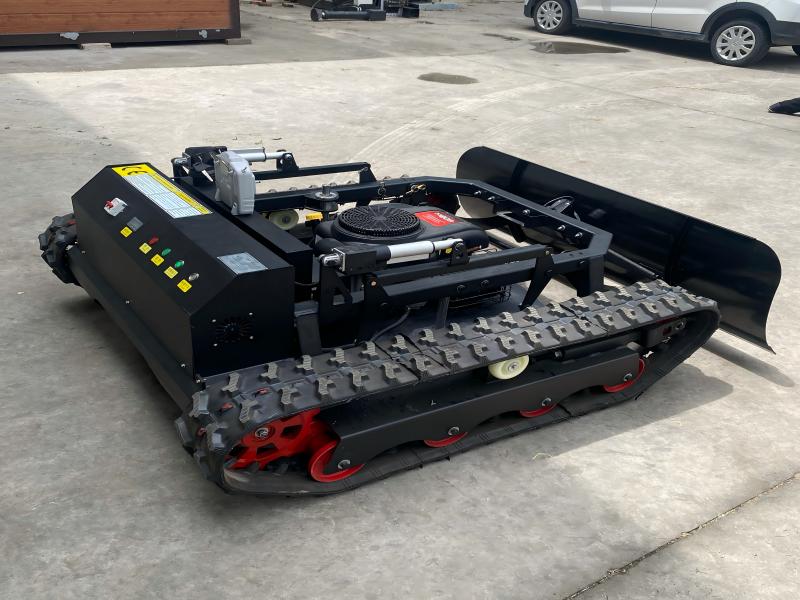

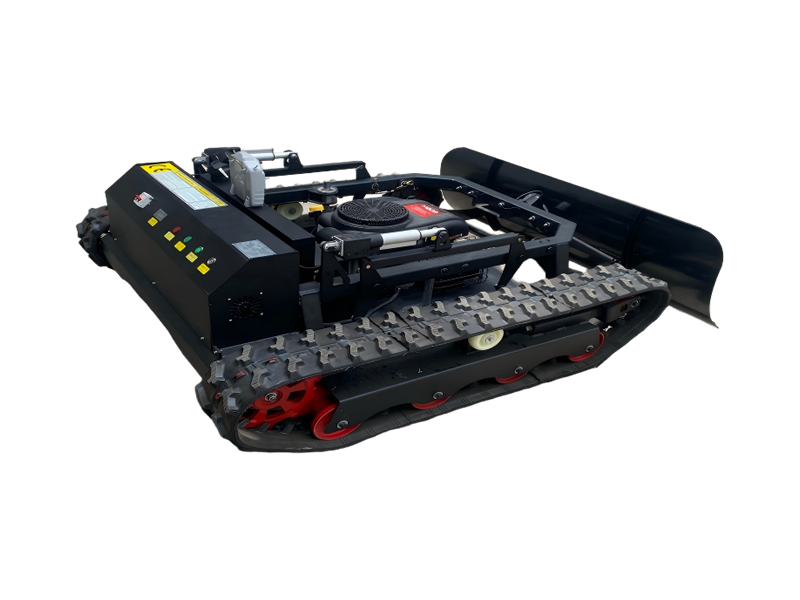

Tank-type Parallel Tracked Lawn Mower
