Triangular Track Remote Control Lawn Mower

Black Panther series

$1000-1500
  • 1500 m²/h Cutting Efficiency
  • 45° Climbing Capability
  • 150 kg Machine Weight
  • Integrated Circuit Control System
Send Inquiry haley.gao@averdyn.com
Triangular Track Remote Control Lawn Mower

Main Functions Of The Product

Discover the unique features and functions of Triangular Track Remote Control Lawn Mower.
Triangular Track Remote Control Lawn Mower

High-Precision, High-Hardness Gear Reducer for Brushless Electromechanical Systems

This gear reducer is specially designed for brushless motor applications, combining high precision and exceptional hardness to ensure stable and efficient power transmission. Its robust construction provides long service life, smooth torque output, and reliable performance even under heavy loads. Ideal for robotics, automation equipment, and other industrial applications where accuracy and durability are critical.

Triangular Track Remote Control Lawn Mower

Fully Enclosed Four-Sided Protective Structure · Industrial-Grade Safety Design

Featuring an integrated four-panel protection system on the front, back, left, and right, this design effectively prevents debris, stones, and hazardous materials from entering the engine and motor systems. It significantly enhances overall machine safety and reliability, even in challenging and complex working environments.

Triangular Track Remote Control Lawn Mower

Chassis Clearance: 180mm · Obstacle-Crossing Capability

The chassis features a 180mm ground clearance, allowing the machine to easily pass over obstacles up to 100mm high, such as stones and tree roots. Constructed from a welded carbon steel frame, the chassis is treated with a corrosion-resistant powder coating, ensuring long-term durability and reliable performance in rugged working environments.

Triangular Track Remote Control Lawn Mower

Grass Cutting Blades: Dual Straight Blades Rotary Disc

Equipped with a dual-blade straight rotary disc, the blades are made of 65Mn spring steel with a thickness of 3mm, offering excellent toughness and wear resistance. The cutting width is 550mm, and the mowing height is adjustable from 20mm to 180mm, providing versatile and efficient grass cutting for a variety of terrains and vegetation types.

Triangular Track Remote Control Lawn Mower

Transmission Design: Engine-Driven Vertical Shaft Blade

The engine drives the cutting disc through a vertical shaft, delivering reliable power to the grass-cutting unit. Equipped with a hydraulic oil cooler, the system effectively prevents overheating during extended operation, ensuring consistent performance and long-term durability.

Triangular Track Remote Control Lawn Mower

Exhaust System: Heat-Resistant Shield & Emission Compliance

The exhaust is equipped with a heat-resistant protective shield to prevent accidental burns, ensuring operator safety. The system meets China National IV (CN IV) emission standards, providing environmentally friendly operation without compromising performance.

Key Features

Year-Round Multi-Function Capability

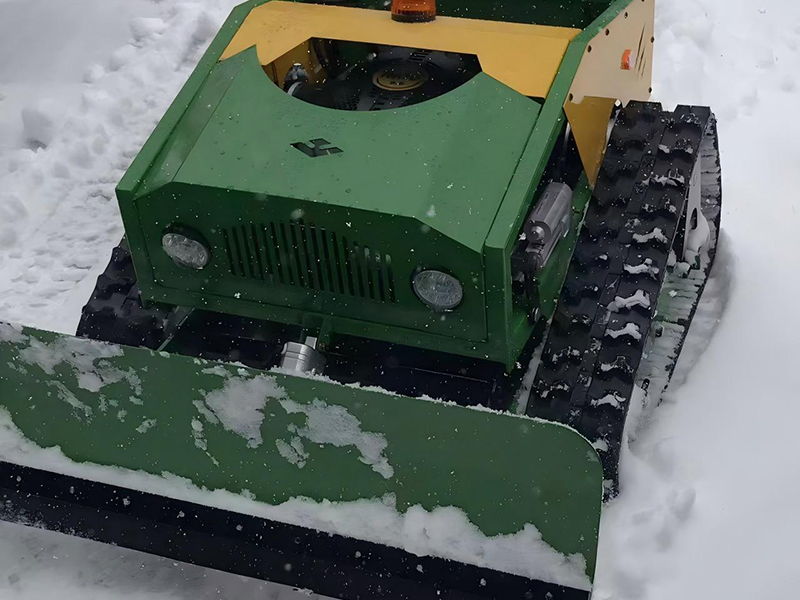

Supports optional snow plows and spraying units, enabling one machine to handle mowing, spraying, disinfection, fertilization, and winter snow removal—maximizing utilization and return on investment throughout the year. The quick-attach interface allows tool changes in minutes with consistent operating logic, reducing training costs while delivering the value of multiple machines in one.

Applicable Scenarios

  • Orchard weed control (row spacing ≥ 1.5 m) and hillside lawn mowing (slopes up to 45°)
  • Operations along the edges of large estates and golf courses
  • Small farm straw return and wasteland clearing
  • Weeding in municipal green belts and parks with complex terrain
  • Weed control for hydraulic projects such as reservoir embankments
  • Large-scale wasteland reclamation and weed removal
  • Home lawn mowing
  • Complex grasslands with diverse tall-stem plants and scattered shrubs

Safety Design Considerations

  1. Engine Shutdown Protection: Automatically stops the engine when oil level is low or oil pressure drops, preventing engine damage.

  2. Track Anti-Derailment Design: Guide teeth on the inner side of the tracks, combined with tension wheels, prevent track derailment.

  3. Operational Safety: The remote controller requires pairing before activation to avoid accidental operation; optional audible and visual alarms (flashing warning lights) can be installed.

  4. Easy Maintenance: Quick-release covers on the engine compartment and cutting disc allow convenient oil changes and blade replacement.

We Have Different Product Lines

Item Black Panther & 500 Black Panther 800 Black Panther
Product Images
Overall Dimensions 1600*1080*890 mm 1180*1150*670 mm
Package size 990*990*810 mm 1230*1200*840 mm
Machine Weight 150 KG 255 KG
Cutting Width 500 mm 800 mm
Cutting Height 20–150 mm 20-150 mm
Travel Speed 4 km/h 5 km/h
Max Climbing Angle 45° 45°
Engine Power 9 HP 16 & 25 HP
Fuel Tank Capacity 1.2L 7.1L
Engine Oil Capacity 0.6L 1.2L
Function Upgrades 1500M²/H 3800M²/H
Cutting Deck Adjustment Modemanual/Electric/Remote Control Modemanual/Electric/Remote Control
Control System Integrated Circuit Control System Wireless integrated control system
Function Upgrades Cutter head adjustment/Akela Crane Remote start/Remote stop
Power Supply Self-generated electricity can work sustainably Self-generated electricity can work sustainably

Applicable Scenarios

  • Orchard weed control (row spacing ≥ 1.5 m) and hillside lawn mowing (slopes up to 45°)
  • Operations along the edges of large estates and golf courses
  • Small farm straw return and wasteland clearing
  • Weeding in municipal green belts and parks with complex terrain
  • Weed control for hydraulic projects such as reservoir embankments
  • Large-scale wasteland reclamation and weed removal
  • Home lawn mowing
  • Complex grasslands with diverse tall-stem plants and scattered shrubs
Triangular Track Remote Control Lawn Mower
Triangular Track Remote Control Lawn Mower
Triangular Track Remote Control Lawn Mower
Triangular Track Remote Control Lawn Mower
Triangular Track Remote Control Lawn Mower

We can provide customized solutions

Product-level customization built to match your terrain, workload, and operating habits.

Customization options

  • Model & Structure Customization by Application
  • Chassis, Wheel & Track Configuration Options
  • Power System & Engine Specification Selection
  • Cutting Width, Height & Deck Design Customization
  • Attachment Integration (Snow Blade, Sprayer, etc.)
  • Control System, Safety & Function Module Customization
  • Appearance, Color & Branding Custom Options
  • OEM / ODM Support with Engineering Assistance
We can provide customized solutions

Why Choose Averdyn Intelligent Tech

Averdyn Intelligent Tech is committed to delivering safe, reliable, and professional remote control mowing solutions for demanding environments. With strong manufacturing capability, engineering-grade design, and comprehensive service support, we help partners and customers achieve higher efficiency, lower risk, and long-term operational stability.
  • Engineered for heavy-duty, long-term operation
  • Stable performance on slopes and complex ground
  • Consistent delivery, parts availability, and service response
  • Flexible models, technical backing, and growth support
