Main Functions Of The Product

Discover the unique features and functions of Triangular Track Remote Control Lawn Mower.

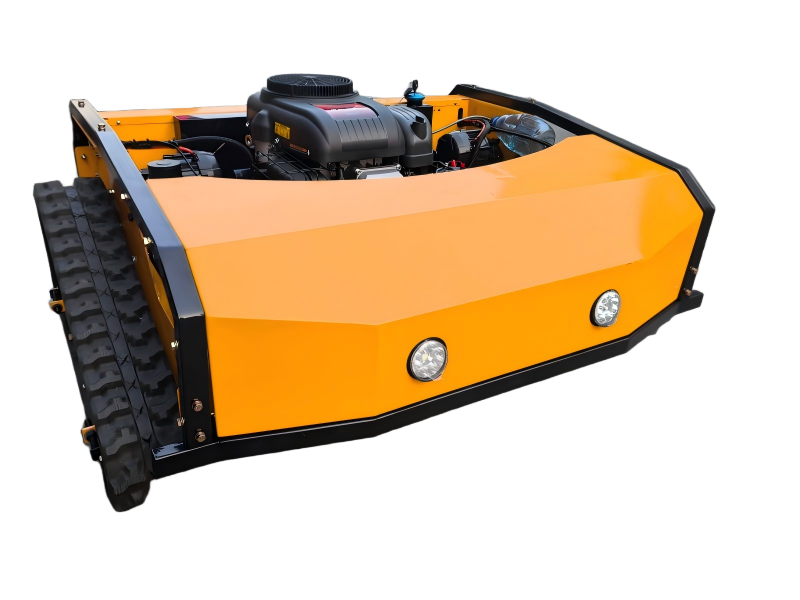

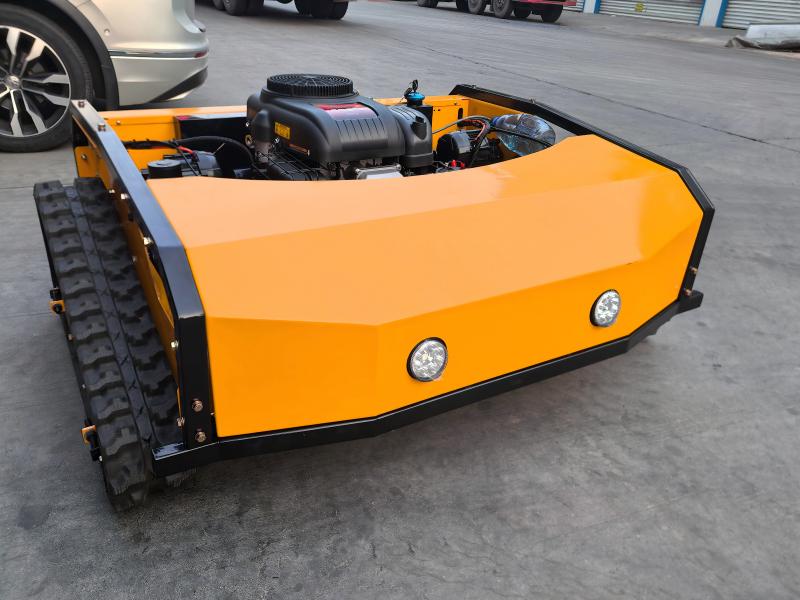

Dual LED Lighting System

Equipped with dual high-brightness industrial-grade LED headlights, providing clear visibility in low-light conditions such as nighttime operation, wooded areas, and slopes, enabling true 24/7 all-weather operation.

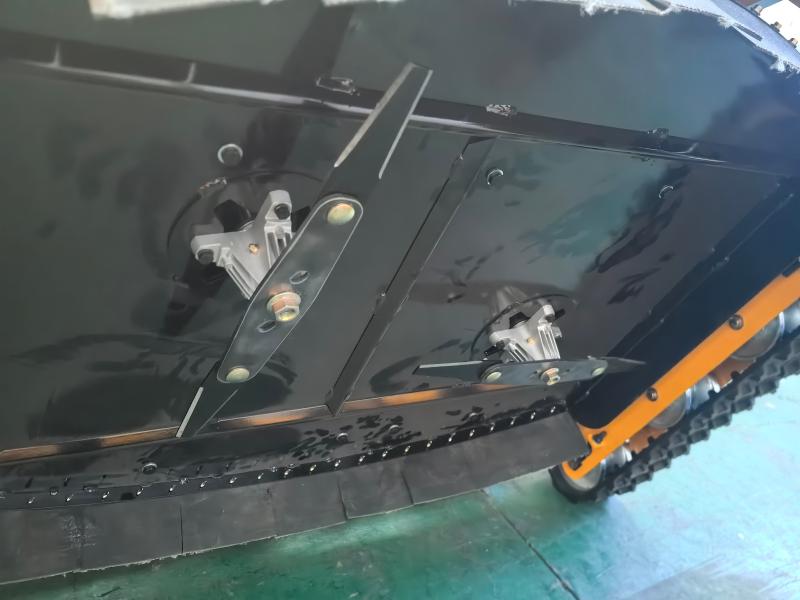

Wider Body with Dual-Blade Cutting System (1100 Model)

The 1100 model features a wider chassis, delivering improved overall stability during operation. Its dual-blade cutting structure provides cleaner and more efficient results when handling tall vegetation and shrubs. Compared with the single long blade used on the 800 and 1000 models, the separated dual-blade design offers greater stability, reduced vibration, and smoother cutting performance, especially in demanding conditions.

Brushless Motor with Precision Gear Reduction

The machine is equipped with a brushless motor and high-precision, high-hardness reduction gears, providing stable and efficient power output. Compared with conventional drive systems, this design reduces wear and maintenance requirements, extends service life, and ensures reliable performance and smooth operation even in complex terrain and demanding working conditions.

Enhanced Cutting System for Maximum Durability and Safety

To achieve exceptional durability and operational safety, the core components of our mower have been comprehensively upgraded. The cutting disc features a reinforced one-piece structure combined with a uniquely designed flail blade system, which effectively reduces the risk of blade breakage when striking hard objects such as stones. This design helps prevent engine shaft and bearing misalignment caused by blade failure, protecting the powertrain from irreversible damage. In addition, the engine is secured with specially customized alloy fasteners, and a dual-blade redundancy design is standard, further ensuring cutting efficiency, operational stability, and reliable performance under demanding working conditions.

Adjustable Cutting Height & High-Clearance Chassis

The cutting height is adjustable from 20 to 150 mm to accommodate different grass types and terrain conditions, enabling both fine trimming and rough cutting with flexible operation. With a ground clearance of 180 mm, the machine can pass over obstacles up to 100 mm high, such as stones and tree roots. The welded carbon steel chassis features a powder-coated, anti-corrosion finish for long-term durability.

Custom High-Strength Steel Frame

The entire chassis is built using custom-engineered, high-strength steel and reinforced to withstand high loads and continuous vibration in demanding working conditions. This heavy-duty structural design enhances overall rigidity, improves machine stability, and minimizes deformation during long-term operation. As a result, the frame delivers exceptional durability and reliability, making it well suited for prolonged, high-intensity use beyond typical residential or light-duty standards.

Key Features

Multi-Functional Capability

Supports optional snow plows and spraying units, enabling one machine to handle mowing, spraying, disinfection, fertilization, and winter snow removal—maximizing utilization and return on investment throughout the year. The quick-attach interface allows tool changes in minutes with consistent operating logic, reducing training costs while delivering the value of multiple machines in one.

Applicable Scenarios

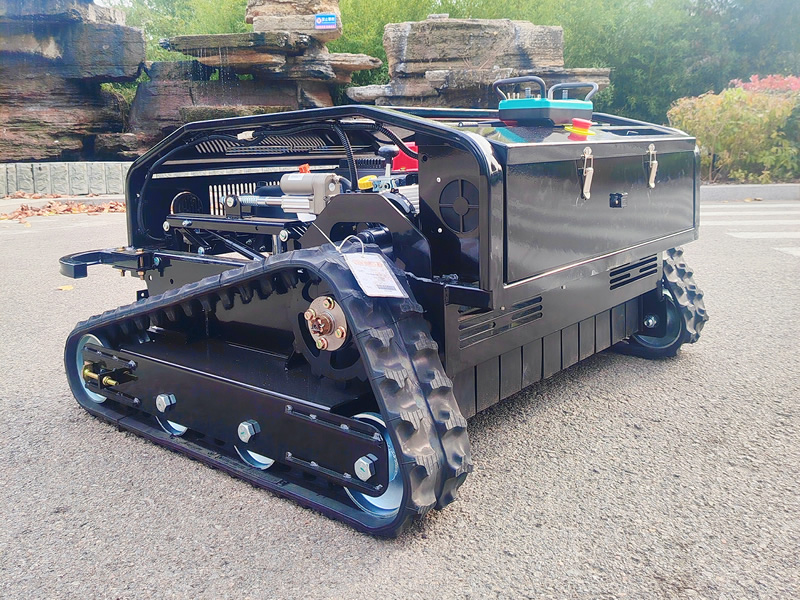

Orchard weeding (row spacing ≥ 1 m) and slope lawn mowing (up to 45°);
Edge maintenance for large estates and golf courses;
Straw mulching, weed control, and wasteland clearing on small farms;
Weed removal in municipal green belts and parks with complex terrain;
Weeding for water conservancy projects such as reservoir embankments;
Large-area wasteland reclamation and weed clearing;
Home lawn mowing and property maintenance.

Safety Design Considerations

Engine Shut-Off Protection: The engine automatically stops when oil level is insufficient or oil pressure is too low, preventing engine damage and cylinder scoring.
Anti-Derailment Track Design: Inner guide teeth combined with a tensioning wheel system effectively prevent track slippage and derailment during operation.
Operational Safety: The remote controller must be paired and activated before use to prevent accidental operation. Optional audible and visual alarms (flashing warning lights) are available for enhanced safety.
Easy Maintenance: Quick-release access panels for the engine compartment and cutting disc allow fast and convenient oil changes and blade replacement.

We Have Different Product Lines

Item	1100 Electric	1100 pairs of knives
Product Images
Overall Dimensions	1100 × 500 × 620 mm	1260 × 520 × 620 mm
Machine Weight	215 kg	320 kg
Cutting Width	1080 mm	1000 mm
Cutting Height	20–180 mm	20–180 mm
Travel Speed	0-3.2 km/h	0–3 km/h
Max Climbing Angle	45°	45°
Mowing Efficiency	4000m²/h
Cutting Deck Adjustment	Remote control	Remote-controlled electric push rod
Control System	Integrated circuit control system	Integrated circuit control system
Power Supply	External power supply charging	Engine self-charging system

Applicable Scenarios

Orchard weeding (row spacing ≥ 1 m) and slope lawn mowing (up to 45°);
Edge maintenance for large estates and golf courses;
Straw mulching, weed control, and wasteland clearing on small farms;
Weed removal in municipal green belts and parks with complex terrain;
Weeding for water conservancy projects such as reservoir embankments;
Large-area wasteland reclamation and weed clearing;
Home lawn mowing and property maintenance.

We can provide customized solutions

Product-level customization built to match your terrain, workload, and operating habits.

Customization options

Model & Structure Customization by Application
Chassis, Wheel & Track Configuration Options
Power System & Engine Specification Selection
Cutting Width, Height & Deck Design Customization
Attachment Integration (Snow Blade, Sprayer, etc.)
Control System, Safety & Function Module Customization
Appearance, Color & Branding Custom Options
OEM / ODM Support with Engineering Assistance
