| Parameter | Specification |
|---|---|

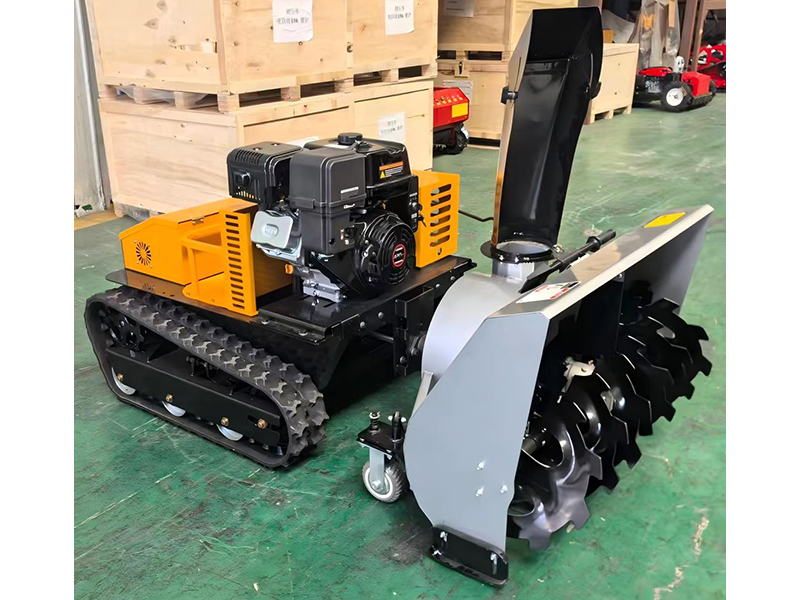

| Model | SH-1000D |
| Machine Dimensions (L x W x H) | 1820 x 1080 x 1040 mm |
| Package Dimensions (L x W x H) | 1870 x 1150 x 1040 mm |
| Net Weight / Gross Weight | 287 kg / 370 kg |
| Snow Clearing Width | 1080 mm |
| Snow Discharge Width | 1050 mm |
| Max. Throwing Distance | 12 m |
| Chassis Tilt Angle (L/R) | 35° |
| Track Width / Contact Length | 150 mm / 900 mm |
| Travel Speed | 0 - 4 km/h |
| Max. Climbing Angle | 35° |
| Engine (Brand & Displacement) | Loncin LONCIN-420CC |
| Engine Certification | EU5 / FPA |
| Starting Method | Recoil & Electric Start |
| Max. Engine Speed / Oil Capacity | 3600 rpm / 1350 ml |
| Fuel Consumption | 1.9 L/h |
| Fuel & Tank Capacity | 6.5L, 92# Gasoline |
| Electrical System Voltage | DC 24V |
| Charging Method | Range Extender |
| Generator | Brushless, 2000W |
| Travel Motor (Brushless) | 800W x 2 |
| Control System | Integrated 5V PWM module; High-power split controller with brake. |
| Remote Control Type | 2.4GHz |
| Remote Control Range | 70 - 800 m |
| Remote Functions | Forward/Backward, Rotation, Cruise, Emergency Stop |
| Remote Certifications | KC, FCC, CE, PSE, RCM |
| Transmitter Power | ≤ 1000 mW |
| Safety Feature 1 | Emergency Stop Button (Standard) |
| Safety Feature 2 | Fail-safe on Signal Loss (Standard) |
| Battery Brake | Optional |
