| Parameter | Specification |
|---|---|

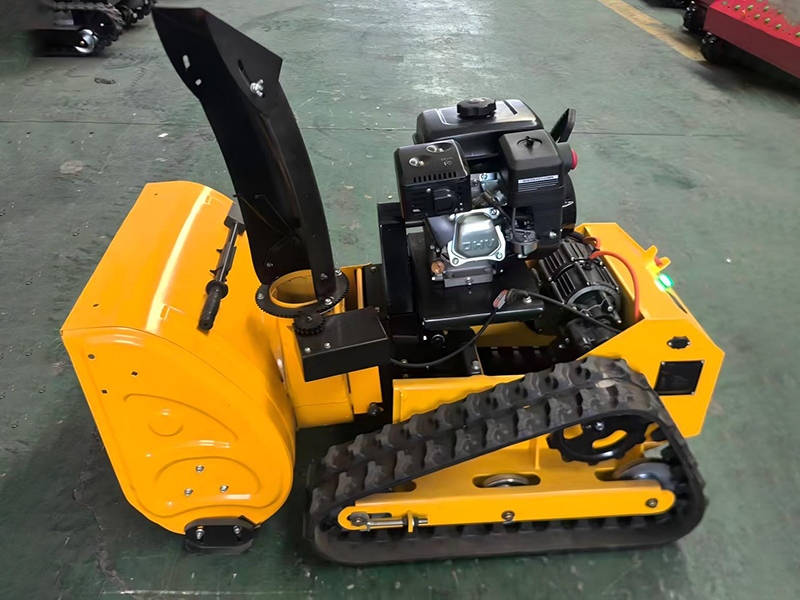

| Model | SH-600D |
| Image | (To be inserted) |
| Machine Dimensions (L x W x H) | 1250 x 730 x 1070 mm |
| Package Dimensions (L x W x H) | 1300 x 780 x 1000 mm |
| Net Weight / Gross Weight | ~170 kg / ~229 kg |
| Snow Clearing Width | 800 mm |
| Snow Discharge Width | 600 mm |
| Max. Throwing Distance | 6 m |
| Chassis Tilt Angle (L/R) | 35° |
| Track Width / Contact Length | 150 mm / 810 mm |
| Travel Speed | 0 - 4 km/h |
| Max. Climbing Angle | 35° |
| Engine (Brand & Displacement) | Loncin LONCIN-196CC |
| Engine Certification | EU5 / FPA |
| Starting Method | Recoil & Electric Start |
| Max. Engine Speed / Oil Capacity | 3600 rpm / 600 ml |
| Fuel Consumption | 0.8 L/h |
| Fuel & Tank Capacity | 3.6L, 92# Gasoline |
| Electrical System Voltage | DC 24V |
| Charging Method | Range Extender |
| Generator | Brushless, 1500W |
| Travel Motor Option 1 (Brushed) | 450W x 2 |
| Travel Motor Option 2 (Brushless) | 500W x 2 |
| Control System | Integrated 5V PWM module; High-power split controller with brake. |
| Remote Control Type | 2.4GHz |
| Remote Control Range | 70 - 800 m |
| Remote Functions | Forward/Backward, Rotation, Cruise, Emergency Stop |
| Remote Certifications | KC, FCC, CE, PSE, RCM |
| Transmitter Power | ≤ 1000 mW |
| Safety Feature 1 | Emergency Stop Button (Standard) |
| Safety Feature 2 | Fail-safe on Signal Loss (Standard) |
| Battery Brake | No |
For more information about our remote control lawn mowers and excavator parts, including customization and technical support, please feel free to contact us.
